ICU SERIES
KRAFT 101

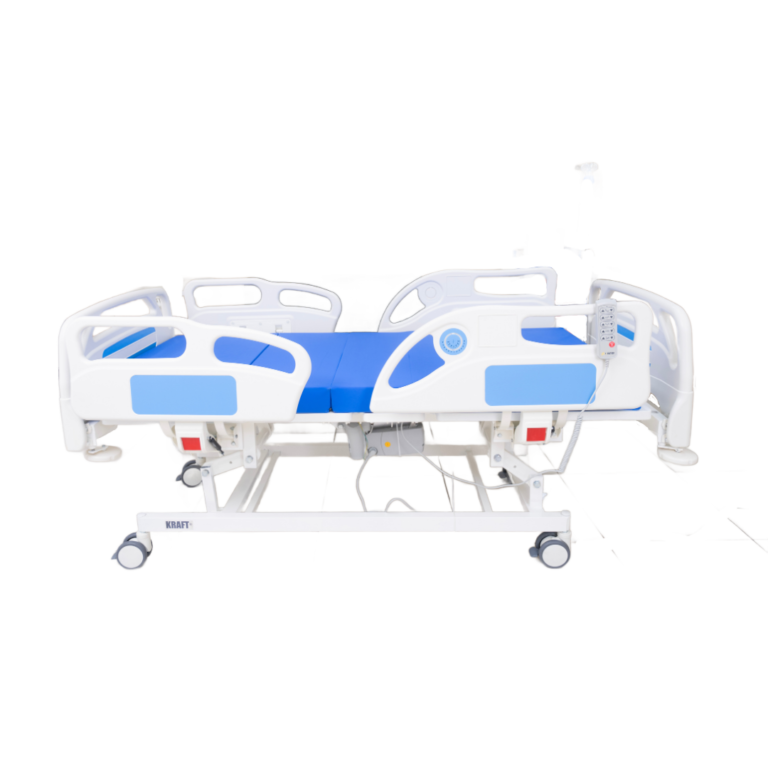

5-Function Motorized ICU Bed
Built for comfort and control.
Designed for efficient nursing care and dependable everyday performance.
- Watch Product Video
KEY BENEFITS
ELECTRIC POSITIONING
Smooth electric adjustment for everyday care.
FULL CONTROL ACCESS
Simple remote-control operation.
HEIGHT ADJUSTMENT
Better working height for safer nursing care.
200 KG SAFE WORKING LOAD
Comfortable positioning for rest and recovery.
SMART VALUE
Reliable performance for ICU and high-dependency wards.
FUNCTION HIGHTLIGHTS
THOUGHTFUL DETAILS
Patient Handset
Four-Actuator System
Four-Section Mattress Platform

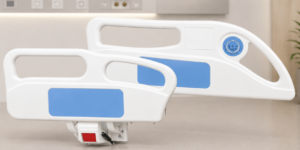

Detachable ABS Head & Foot Boards
ABS Side Rails
Castors & Braking System
Function Highlights
Overall Size (L × W)
2150 mm x 965 mm x 485 to 710 mm (height adjustable)
Platform Size
1955 mmx 838 mmx 25 mm
Height Range
485 to 710 mm (height adjustable)
Safe Working Load
200 KG

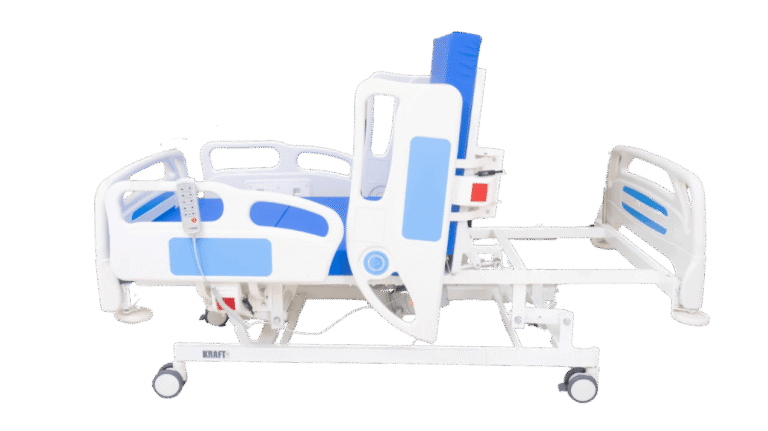

Backrest Angle
0-72deg
Leg-Rest Angle
0-38 deg

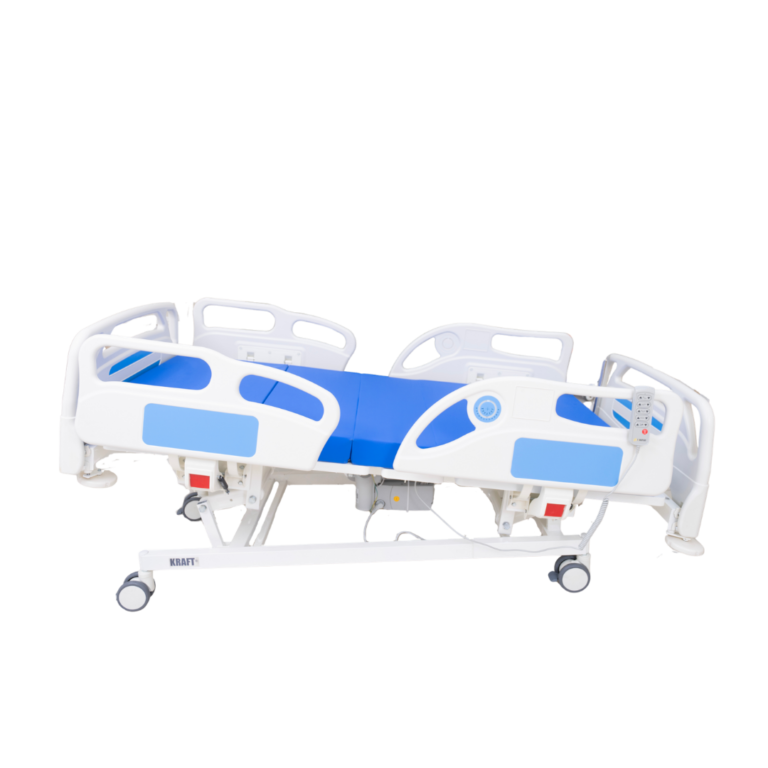

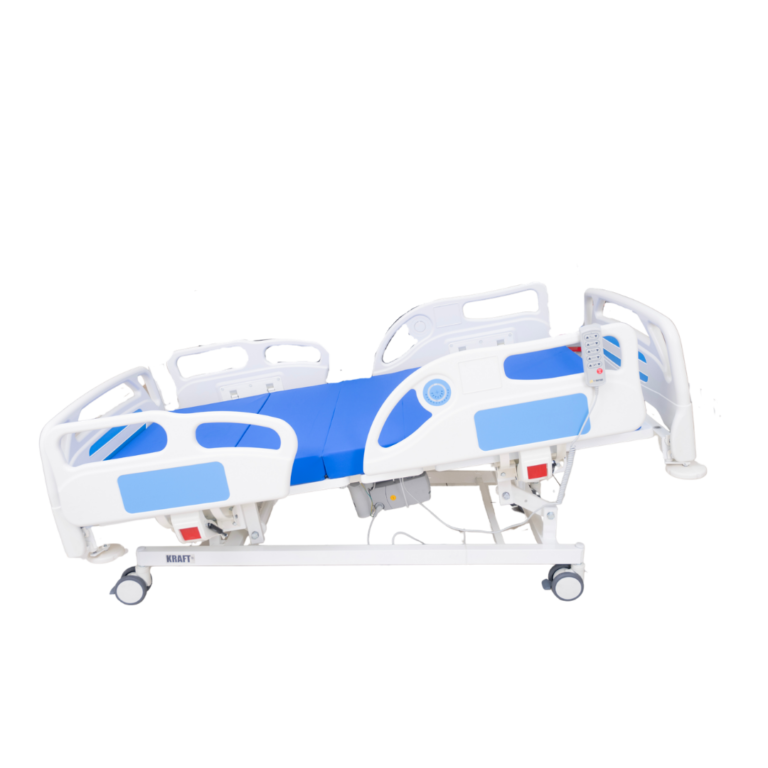

Trendelenburg / Reverse Trendelenburg
0-11 deg
Functions
5 motorized functions
Actuators
4
Control System
1 control box + 1 handset
Castors / Braking
125 mm
Mattress
100 mm
Accessories & Options
IV Pole

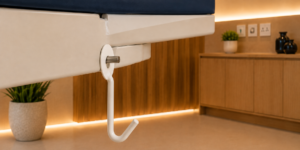

Urine Bag Holders
100 mm Mattress

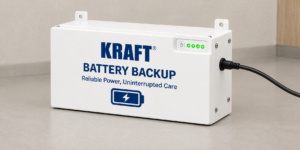

Battery Backup - optional
ABS Side-Rail
